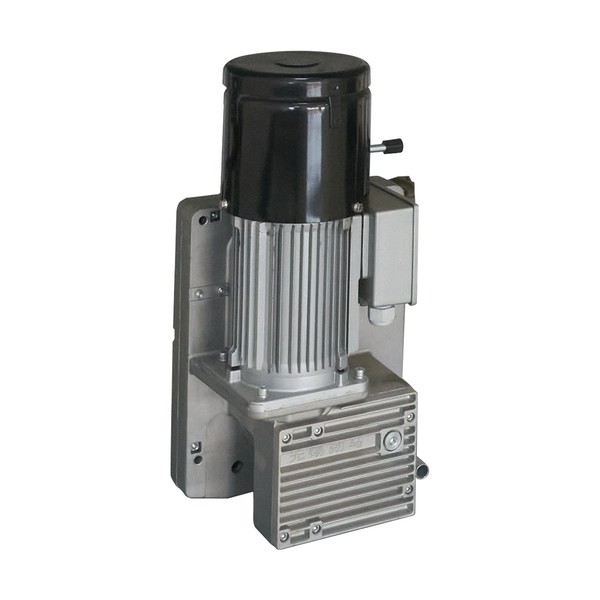

Traction hoist of suspended platform
Introduction
1. Core Functions
As the power hub of suspended platforms, our traction hoist delivers exceptional performance for vertical lifting applications. Key functions include:
Smooth & Efficient Lifting: Equipped with variable frequency speed control, ensuring stable operation and precise positioning for personnel, tools, and materials .
Heavy-Duty Capacity: Available in models with rated loads ranging from 500kg to 1000kg, meeting diverse construction requirements .
Safety-Centric Design: Integrated overspeed detection device, overload protection, and fail-safe electromagnetic brake to ensure reliable shutdown in emergencies .
2. Key Components
Our traction hoist features robust construction with precision-engineered components for durability and safety:
Traction Mechanism: Wear-resistant traction sheave with optimized groove design to extend wire rope lifespan and prevent jamming .
Safety Components: Overspeed governor, overload sensor, and emergency stop switch provide multi-layered protection .
Electrical System: Compatible with 3-phase power supplies (220V/380V/400V/415V, 50/60Hz) with IP54-rated waterproof electrical enclosures .
Parameter
| Item |
Parameters |
||||
| Hoist | Hoist model |
LTD6.3 |
LTD8 |
LTD10 |
|
| Rated lifting force |
6.17 kN |
8 kN |
10 kN |
||
| Wire rope |
8.3mm |
9.1mm |
10.2mm |
||
| Weight |
43kg |
46kg |
52kg |
||
| Motor | Model |
YEJ 90L-4 |
YEJ 90L-4 |
YEJ 90L-4 |
|
| Power |
1.5 kW |
1.8 kW |
2.2 kW |
||
| Voltage |
3N~380 V |
3N~380 V |
3N~380 V |
||
| Speed |
1420 r/min |
1420 r/min |
1420 r/min |
||
| Brake force moment |
15 N·m |
15 N·m |
15 N·m |
||

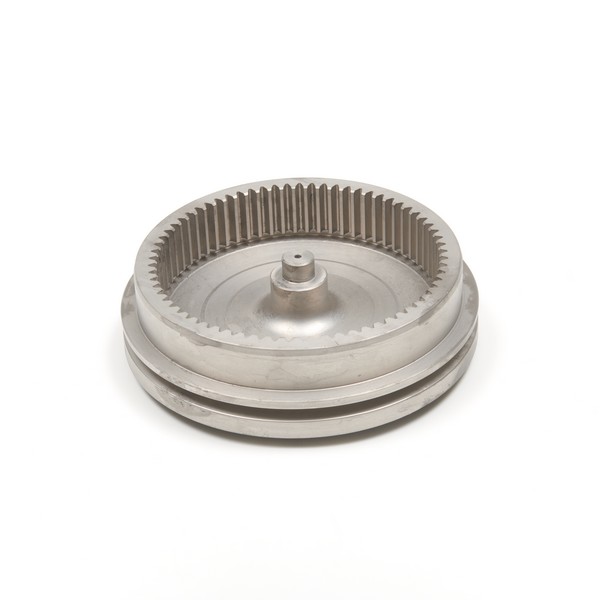

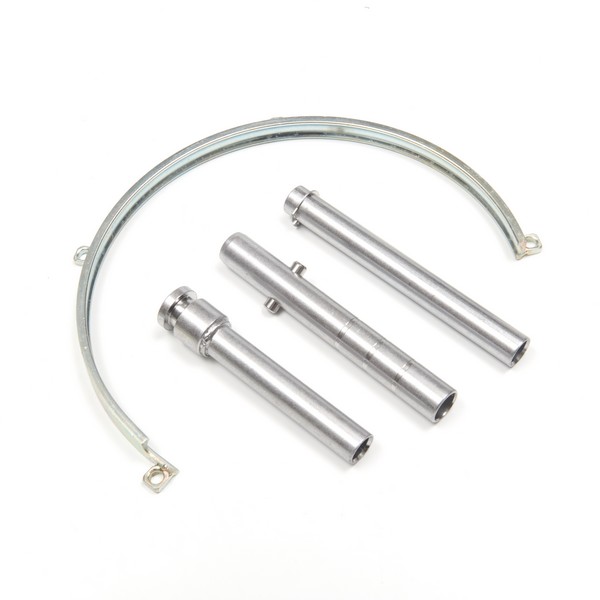

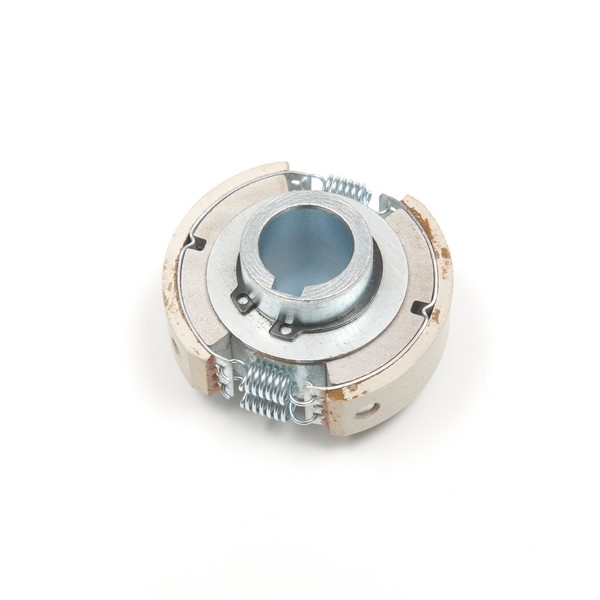

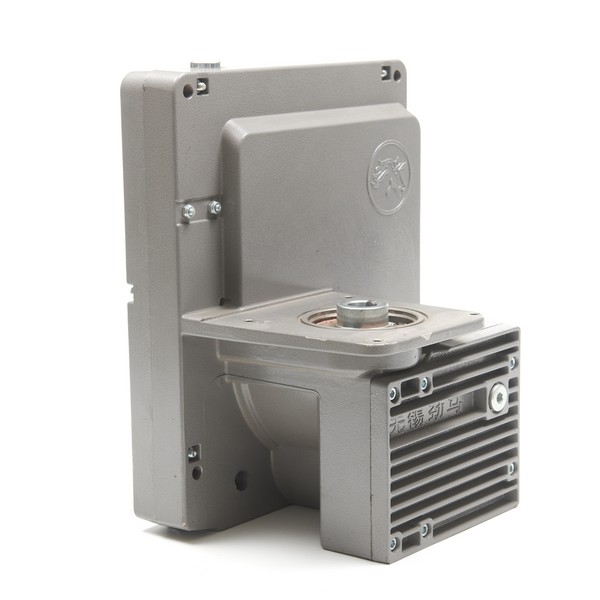

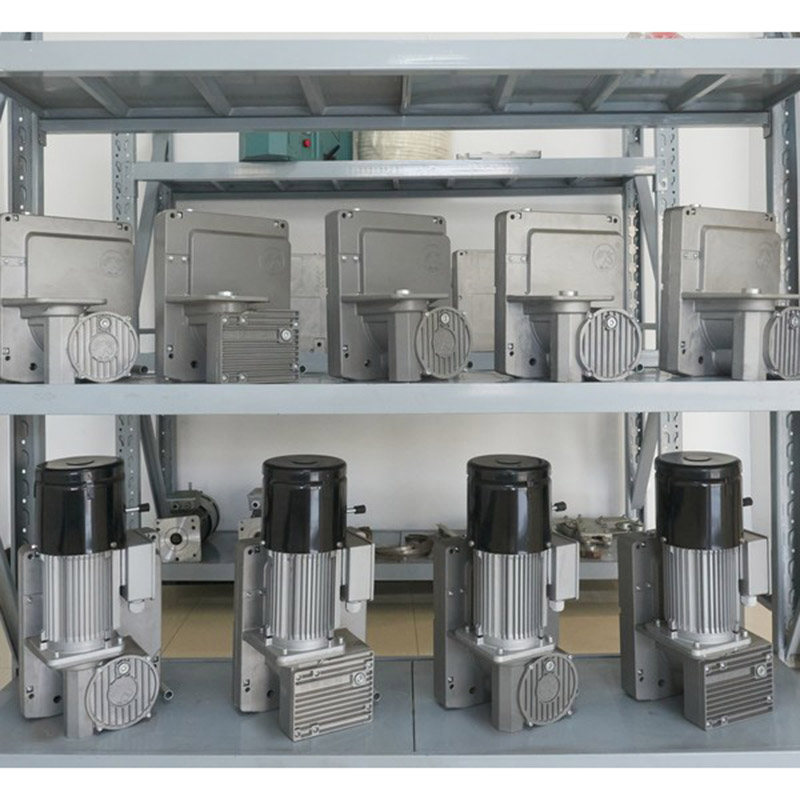

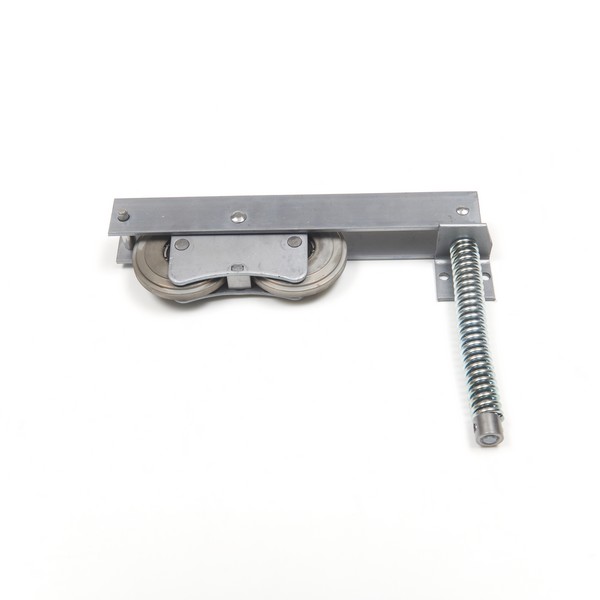

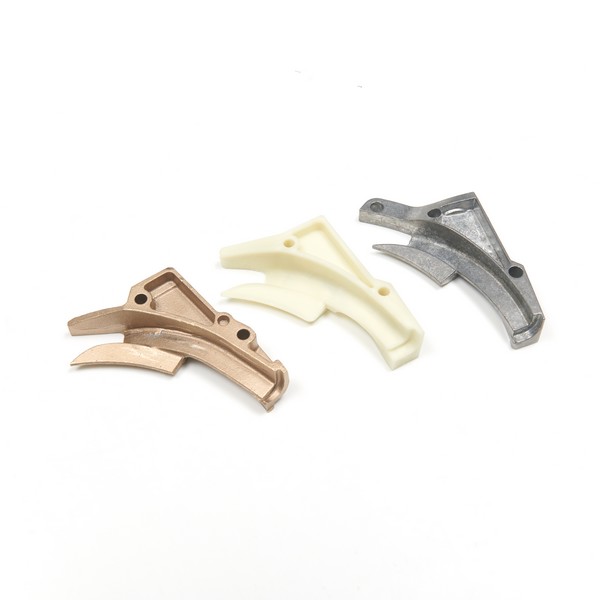

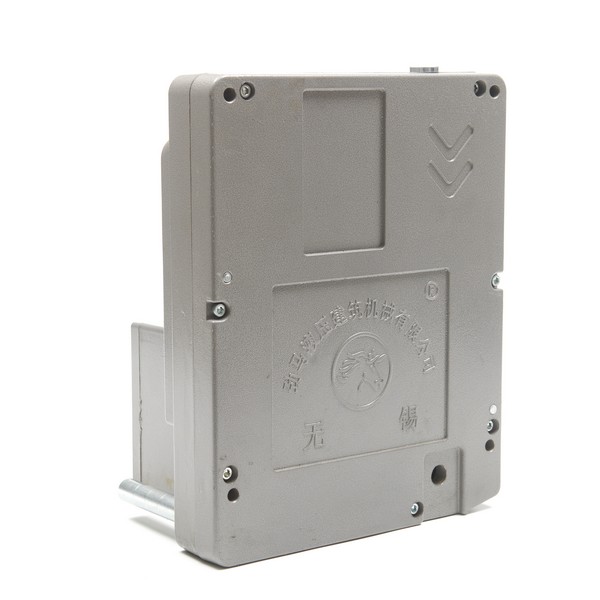

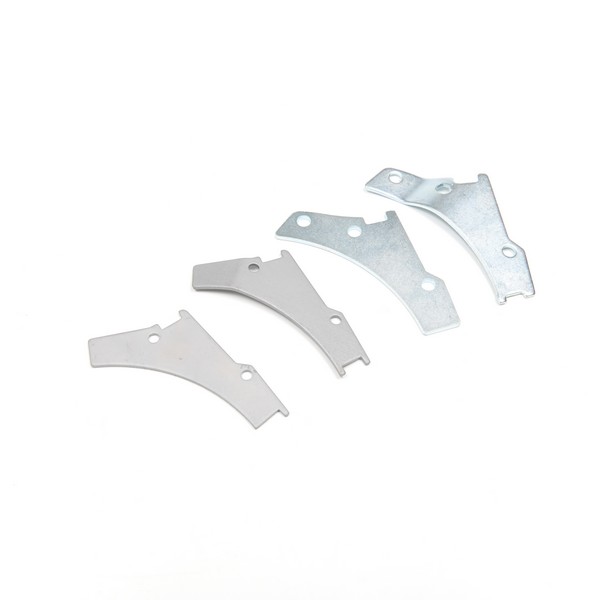

Parts Display
